Hunza’s New Lake: The Story Behind the Birth of Lake Gojal

Scientists and satellites hold vigil on a newborn lake in Hunza



By Natasha Vizcarra

On 4 January 2010, a rockslide 1200 meters long, 350 meters wide, and 125 meters high dammed the Hunza River in Attabad, in the Hunza Valley of northern Pakistan, and formed Lake Gojal. The initial mass movement of rock buried the village of Attabad, destroying 26 homes and killing 20 people. It also submerged several villages and 22 kilometers of the strategic Karakoram Highway linking Pakistan and China. Tens of thousands of people were displaced or cut off from overland connection with the rest of the country. On March 16, 2010, the Advanced Land Imager (ALI) on NASA’s Earth Observing-1 (EO-1) satellite captured this true-color image of the lake created by the landslide of January 4. (Note that north is on the right.). Dark rock covers the river in the upper left corner of the image, and the turquoise V-shaped lake stretches out behind the slide. Near the 'temporary' lake, the Karakoram Highway is a faint meandering line of pale brown. A bridge across the Hunza River has been submerged by the rising waters. The bridge connects the settlements of Shaskat (or Shiskit) and Gulmit on the region’s only route to and from China. See next satellite image. Image: NASA

“Lake Gojal could go at any time, or it could just last for centuries” –  Scientist Jeffrey Kargel

 A nervous sense of humor greets travelers at the highest and most scenic road in the world. Hand-painted signs saying, “Relax, slide area ends” dot sections of the Karakoram Highway along the Hunza River in northern Pakistan. Landslides are commonplace here. But on January 4, 2010, a massive rockslide buried part of a village and blocked the river’s flow. Boulders, rocks, and debris tumbled down the mountainside that day, killing twenty people and damming the river until it swelled and swallowed more communities. In months, the plugged-up river would submerge eleven miles of the Karakoram Highway, turning a thriving region buzzing with trade from the Chinese border into scattered clumps of unconnected villages.

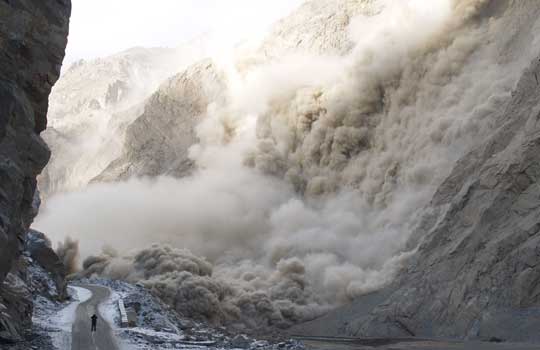

A man stands in the middle of the Karakoram Highway while rocks tumble down into the Hunza River in Pakistan’s Gojal region. The rockslide dammed the river and created Lake Gojal, which submerged eleven miles of the Karakoram Highway and isolated several villages. Photo: Courtesy I. Ali Shimshal/Pamir Times)

When hydrologist Jeffrey Kargel of the University of Arizona saw news footage of the rockslide, he had a hunch the flooded river could swell into a lake. He asked geologist Gregory Leonard to check recent satellite images of the area. “Sure enough, there was a lake forming behind the rockslide dam,” said Leonard, Kargel’s colleague at the University of Arizona. “It’s always startling to see the first images of these kinds of things.” Something else worried Kargel. Three huge glaciers, including the thirty-five-mile long Batura Glacier, are perched on the mountains above the flooded villages. In spring, those glaciers would start gushing melt water down into the new lake. Kargel said, “If the rockslide dam overflowed and burst, more people downstream would be in harm’s way.” Kargel studies glaciers and the hazards for communities living near them. He had the tools to figure out when the new Lake Gojal would overflow. But he and Leonard had to do it fast, if the information was to be of any help.

Bathtub model

In many ways, the birth of Lake Gojal was not a surprise. The Hunza River, from which it spawned, sits deep in a mountain valley with extremely steep slopes. “Masses of loose glacial sediment mantle some of these slopes,” Kargel said. The loose gravel, steep slopes, and the water that starts trickling down every spring from the Batura, Pasu, and Ghulkin glaciers have made the region notoriously vulnerable to rockslides and floods. While geologists have found evidence of rockslides that date back to the 1800s, the January 2010 rockslide that thundered into Hunza and snuffed out Attabad village was larger than usual, and finally succeeded in completely cutting off the river. It also cut off the rest of the world. Locals struggled to escape the area, and rescue workers toiled to haul aid and supplies to the isolated villages. With efforts focused on emergency response and disaster preparedness, Kargel and Leonard searched for reports on the new lake in the media and from colleagues.

The Advanced Spaceborne Thermal Emission and Reflection Radiometer (ASTER) on NASA’s Terra satellite captured this false-color image of the landslide lake on the Hunza River on May 2, 2010. Blue indicates water, red indicates vegetation, and shades of beige and gray indicate bare rock. The approximate extent of the lake on March 16, 2010, appears as a white outline. This image has been rotated, so north is to the right. Image: NASA

In Arizona, the two researchers decided to make a virtual three-dimensional model of the blocked valley and the lake that was growing inside the valley to determine when water would overflow the dam. They had to figure out how much water was already in it, and how much more was expected to flow into it once the nearby glaciers started sending melt water in the spring. “It’s like creating a bathtub model of the shape of this valley and the dam itself,” Leonard said. To create the model, they relied on data extracted from the Advanced Spaceborne Thermal Emission and Reflection Radiometer (ASTER) Global Digital Elevation Model (GDEM). They also analyzed a sequence of satellite images taken by the ASTER and Advanced Land Imager (ALI) instruments. The satellite images revealed the lake’s growth and its submergence of the Karakoram Highway and several villages, and how the land around the area had changed before and after the rockslide.

A swelling lake

They now knew what the shape of the tub looked like; the next challenge was to gauge how much water was flowing into it. Kargel found a thirty-year record of the Hunza River’s rate of flow. “That data set was really crucial,” he said. With it, they could estimate how much water was flowing into the lake, and how the lake would evolve. To identify the sources of glacier melt water above the valley, they used images from the Global Land Ice Measurements from Space (GLIMS) project. But they still needed to confirm some of the river flow and satellite data with field observations. Geoscientist Jean Schneider was already at Lake Gojal, working as a consultant for Pakistan’s National Disaster Management Authority (NDMA). He described what kind of rocks and soil had tumbled from the mountainside, measured everything that he could, and sent photographs. “Internet access was difficult in the region, so it was hard to get data to and from Jeffrey in the field,” said Schneider, who had to send the data from his office at the University of Vienna.

Travelers and locals cram into boats and ferries for the two-hour crossing of Lake Gojal. The snow-capped, jagged peaks of Mount Tupopdan are seen in the background. Courtesy M. Pearson/ShelterBox)

The researchers calculated that the lake’s volume was three to four times larger than what was being reported by the local media. They predicted on April 14, 2010, that the lake would overflow sometime from May 29 to June 1, and that there was a possibility that the rockslide dam would burst. “I was a little alarmed at the difference in our figures and what was being reported,” Kargel said. “So I approached the U.S. State Department’s Pakistan office, retired Pakistan military authorities who were still connected to the Pakistan NDMA, and I approached Focus Humanitarian Assistance Pakistan. These urgent warnings apparently did reach the authorities in the field and presumably were of some use in planning and preparations for a possible flood.”

From mid-winter to late spring, disaster management crews had been carving out a spillway to ease the lake’s swelling, and evacuating communities. The growing lake had displaced more than a thousand people and destroyed homes, farms, and fruit orchards in the villages of Shishkat and Gulmit. As it turned out, the overflow began on May 29, and the spilling water soon grew to a torrent.

Forever or not

Engineers and army laborers carved a spillway through the dam, and water finally began flowing through it in late May 2010. Although the spillway relieved pressure on the landslide lake, the Hunza Valley did not return to normal. Acquired on August 3, 2011, by the Advanced Land Imager (ALI) on NASA’s Earth Observing-1 (EO-1) satellite, this natural-color image shows the earthen dam and lingering lake behind it. The image is rotated so that north is at right. See enlarged boxed area, below. Image: NASA

To the researchers’ surprise, the dam held as the water spilled over. Kargel said, “Everybody concerned, with one exception, was expecting a catastrophe of one magnitude or another.” That exception was hydrologist Victor Baker, Kargel’s colleague at the University of Arizona. Baker was convinced that the dam would hold and that the new lake would remain a lake for many years. “He believed that the dam’s downstream length was long enough and massive enough to prevent a rapid outburst,” Kargel said. The energy from water spilling over would be dissipated as it traversed the almost mile-long dam and would keep villages downstream safe. The lake would drain slowly and carve out a natural spillway through gradual erosion.

“Indeed, Baker has so far been correct,” Kargel said. However, Kargel and Leonard are not convinced that the lake is completely harmless. The rockslide dam contains clay from previous glacier melts and landslide-dammed lakes in the valley. Kargel believes the clay could deform over winters and springs as water inside it repeatedly freezes and thaws. Water seeping from within the dam might erode the clay and cause a catastrophic dam burst. Leonard said rockslide dams also typically burst shortly after an overflow. “This really is a big question,” he said. “We all wonder if this one is going to last a long time.”

Waiting game

As scientists debate Lake Gojal’s life expectancy, people displaced by the lake are scrambling for ways to live with it. Parts of the Karakoram Highway remain impassable, but boats and ferries now crowd makeshift docks at the lake’s spillway and at the northernmost shore in Hussaini village. However, the two-hour lake crossing is uncomfortable and somewhat dangerous. Boats are crammed with passengers, animals, and goods beyond their capacity. Sometimes, it is just not possible to travel to the isolated villages. “People can cross the lake only during daytime and when the weather is good,” said rescue volunteer Rehmat Ali Tajik. Locals wait for word of when Karakoram Highway will be repaired. Local journalist Noor Muhammad said, “There is a hope that roads will be constructed sooner or later. People know that the Karakoram Highway is very important to Pakistan and China.”

A close-up of the boxed area from the previous image. The image is rotated so that north is at right. Geologist David Petley (International Landslide Centre at Durham University) has tracked the effects of the Hunza landslide since January 2010. He concluded that the Hunza lake levels probably stabilized by early July 2010, thanks to the spillway. Over the following 13 months, water flowing through the spillway eroded the landslide dam, widening the flow channel. Yet flow out of the lake and down the river valley remained constrained by the narrow inlet through the dam crest. Between July 2010 and August 2011, that crest changed little, Petley observed. Image: NASA

Meanwhile, the lake needs watching. Locals fear that Lake Gojal still holds a dangerous amount of water and have used hand tools to widen the spillway themselves. “The spillway has just not been able to bring the water level down considerably,” Muhammad said. Unusually warm weather could bring more water from the glaciers down to the lake. Kargel and his colleagues continue to distrust the dam. “The lake remains dangerous, in my opinion,” Kargel said. “We will keep a satellite’s eye view on the situation.” It may turn out to be a long vigil. “This lake could go at any time, or it could just last for centuries,” he said.

Date posted: Friday, March 2, 2012

This article was originally featured in the 2011 issue of Sensing Our Planet, a NASA publication. For more information, see references below.

________________

About the scientists:

Jeffrey Kargel is a hydrologist and senior associate research scientist at the University of Arizona. He also serves as the coordinator for the Global Land Ice Measurements from Space (GLIMS) project. Kargel became interested in glaciers through his research on the Martian cryosphere and its geologic and climatic history. NASA supported his research. (Photograph courtesy J. Kargel).

Gregory Leonard is a geologist and assistant research scientist in the Department of Hydrology and Water Resources at the University of Arizona. As a member of the GLIMS project, he applies remote sensing and Geographic Information System (GIS) science with field glaciological studies to monitor the changing state of alpine glaciers in Alaska and the Himalaya. NASA supported his research. (Photograph courtesy G. Leonard)

References:

1. The article is featured in the 2011 edition of  NASA’s annual print publication Sensing Our Planet, produced at The National Snow and Ice Data Center (www.nscidc.org). The article arose from research that used data from NASA Earth Observing System Data and Information System (EOSDIS) data centers. To download a PDF version of the publication please click Sensing Our Planet. To request printed copies please send an email to nsidc@nsidc.org.

Each year, Sensing Our Planet features intriguing research that highlights how scientists are using Earth science data to learn about our planet. These articles are also a resource for learning about science and about the data, for discovering new and interdisciplinary uses of science data sets, and for locating data and education resources.

2. Kargel, J. S. and G. Leonard. 2010. Satellite monitoring of Pakistan’s rockslide-dammed Lake Gojal. Eos, Transactions, American Geophysical Union 91 (43):394-395.
